Description
AC Infinity introduces the revolutionary IONGRID S22 LED grow light, designed to optimize plant yields in all grow stages. Featuring an innovative halo design, this 130W full-spectrum light ensures uniform coverage and deeper light penetration, maximizing plant growth and productivity.
The IONGRID S22 is powered by a combination of Samsung LM301H white, red, and IR LEDs, specifically formulated for optimal plant growth. This linear bar light design has been adapted into a unique four-sided halo form factor, delivering commercial lighting output in a compact, efficient package.

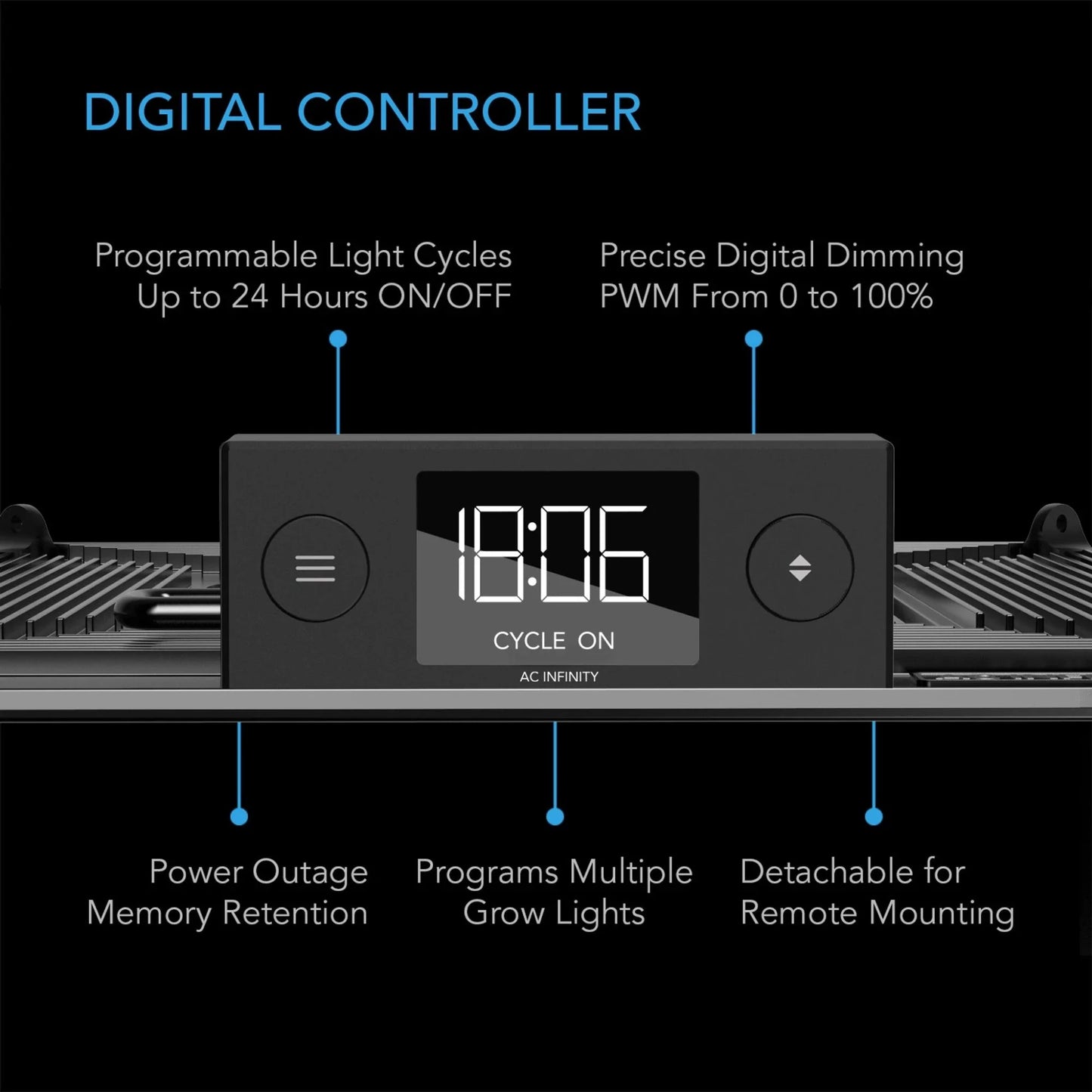

Equipped with a digital controller that includes daisy-chaining ports and features such as PWM dimming, timers, cycles, and backup memory, the IONGRID S22 provides a comprehensive and customizable lighting solution for indoor growers.

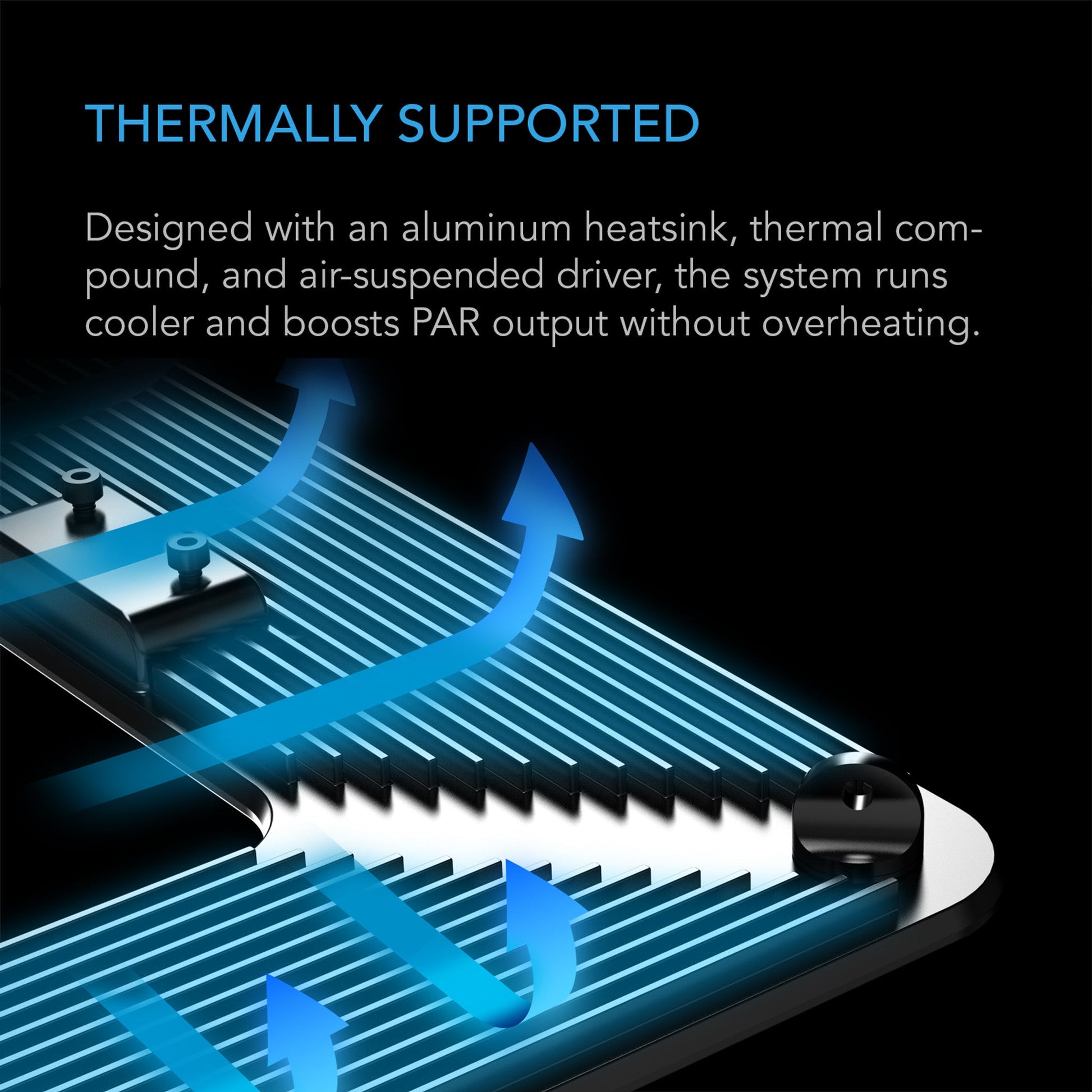

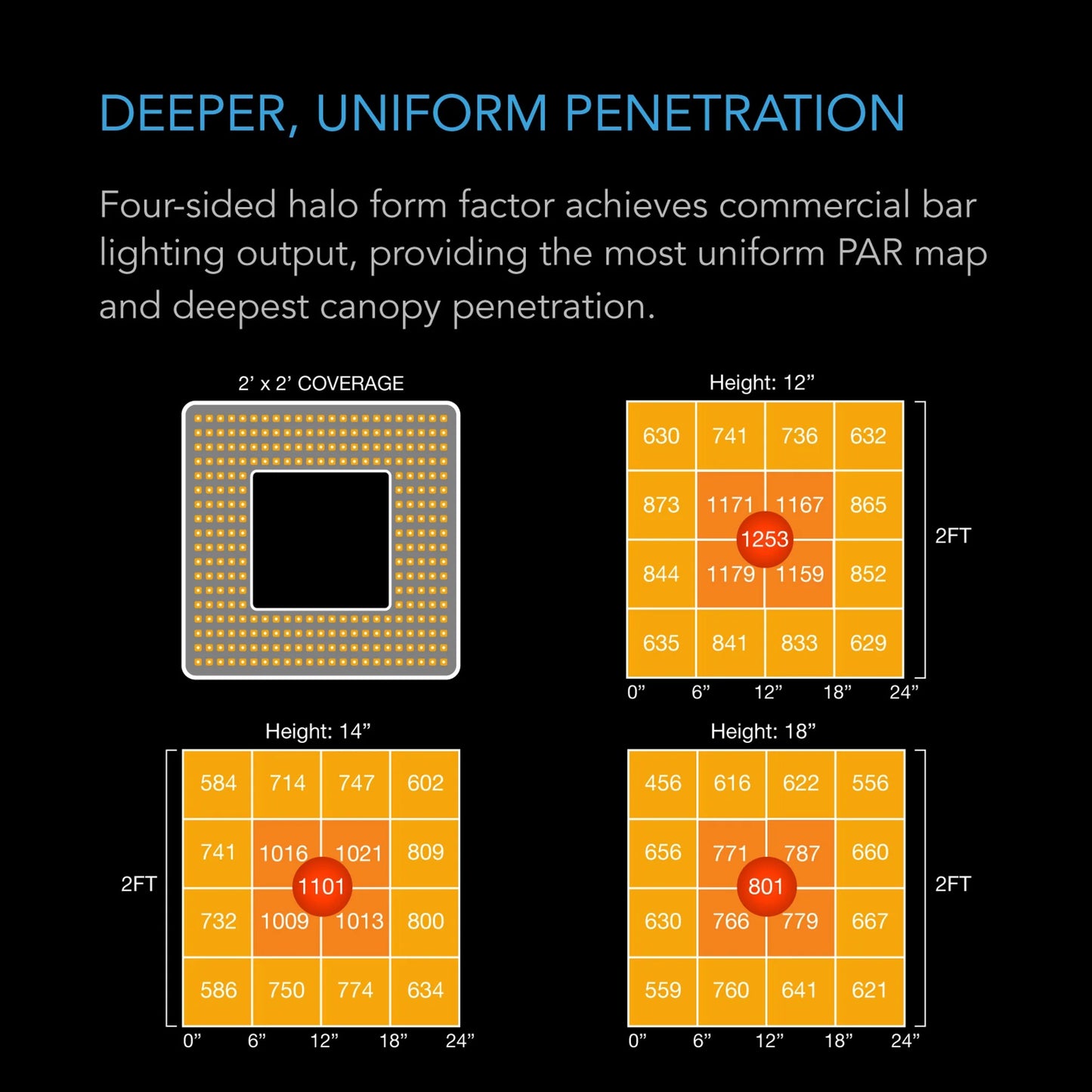

The air-suspended driver, coupled with an aluminum heatsink, passively cools the LEDs, ensuring their longevity while boosting PAR (photosynthetically active radiation) output. The product's technical specifications further set it apart in the market: with a PPFD (photosynthetic photon flux density) of 1253 and an efficiency of 2.7 µmol/j, the IONGRID S22 delivers exceptional performance for its 130W wattage.
Technical Specifications:
- Manufacturer: AC Infinity Inc.
- Product Name: IONGRID S22
- Product Model: AC-IGS22
- UPC Code: 819137021921

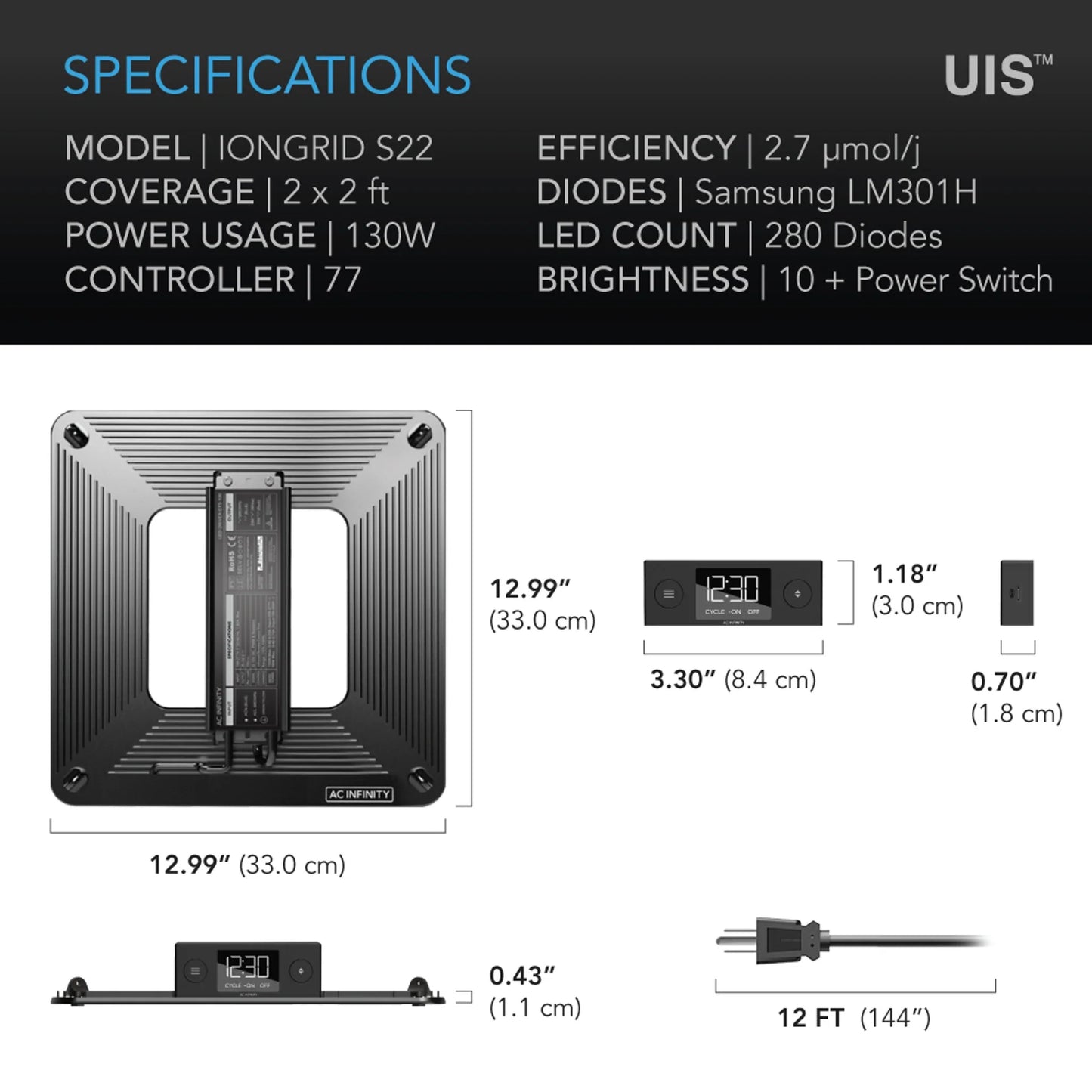

- Light Dimensions: 12.99 x 12.99 in. (33.0 x 33.0 cm)
- Heatsink Height: 0.43 in. (1.1 cm)
- Controller Dimensions: 3.30 x 1.18 x 0.70 in. (8.4 x 3.0 x 1.8 cm)
- Coverage: 2 x 2 ft.
- Diodes: Samsung LM301H
- LED Chip Count: 280
- LED Driver: AC Infinity Proprietary Driver, Model GTS-100
- Efficiency: 2.7 µmol/j
- PPFD: 1253 PPFD

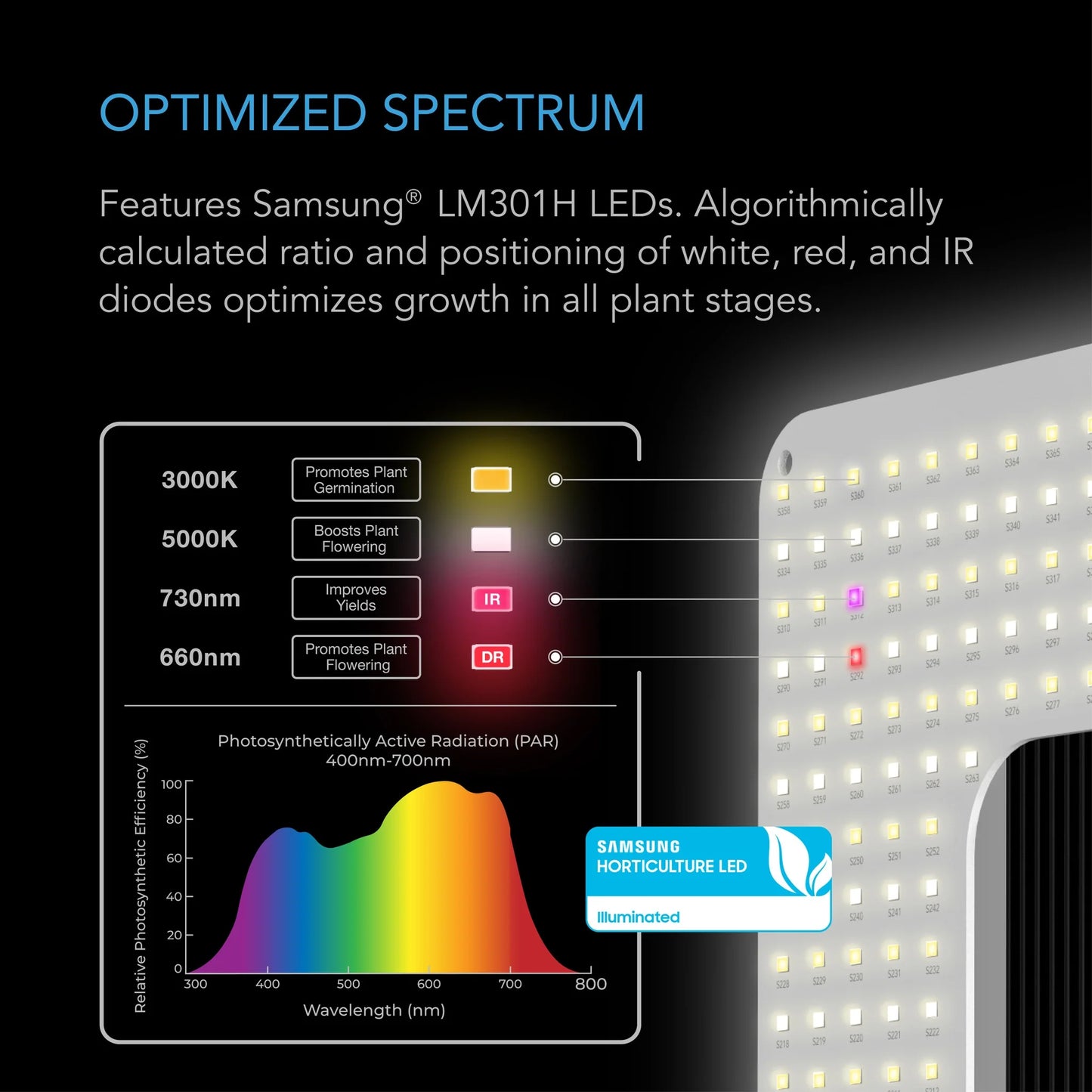

- Spectrum: 660nm, 730nm, 3000K, 5000K
- Wattage: 130 W
- Voltage: 100-277V AC
- Frequency: 50/60 Hz
- Amps: 1.17 A @ 120V | 0.58 A @ 240V | 0.51 A @ 277V
- Controller: Digital Dimming Timer
- Power Connector Type: US Plug (NEMA 1-15 Type-A)
- Operating Humidity: 35 to 85% RH
- Operating Temperature: 32 to 104°F
- Life Expectancy: 50,000 Hours
